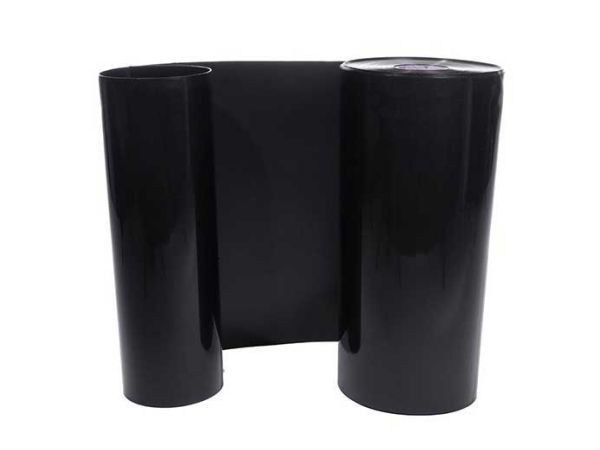

HDPE Geomembrane

HDPE geomembrane (High-Density Polyethylene Geomembrane) is an impermeable membrane made from high-density polyethylene (HDPE) material. It is widely used in environmental protection, water conservation, and civil engineering projects. With excellent impermeability, chemical resistance, UV resistance, and high mechanical strength, HDPE geomembrane is commonly applied in landfills, artificial lakes, ponds, tunnels, mining operations, and containment liner systems.

HDPE geomembrane is typically joined using thermal fusion welding technology, ensuring strong and secure seams that effectively prevent liquid or gas leakage. With a long service life and the ability to withstand harsh environments, it is a cost-effective and efficient solution for waterproofing and seepage control.

Features

1. Good flexibility.

2. For service temperature range:-70°C~110°C.

3. Corrosion resistance, aging resistance. Puncture resisting,  ultra-violet radiation, oil and salt, alkali. High and low-temperature resistance, non-toxicity, long operational life.

4. Excellent environmental stress cracking resistance property.Good waterproof, drainage, anti-seepage, and damp-proof effects.

5. High tensile strength and elongation.High tearing resistance, strong deformation adaptability.

6. Good physical and mechanical performance.

7. Complete width and thickness specifications, low cost, and simple construction.

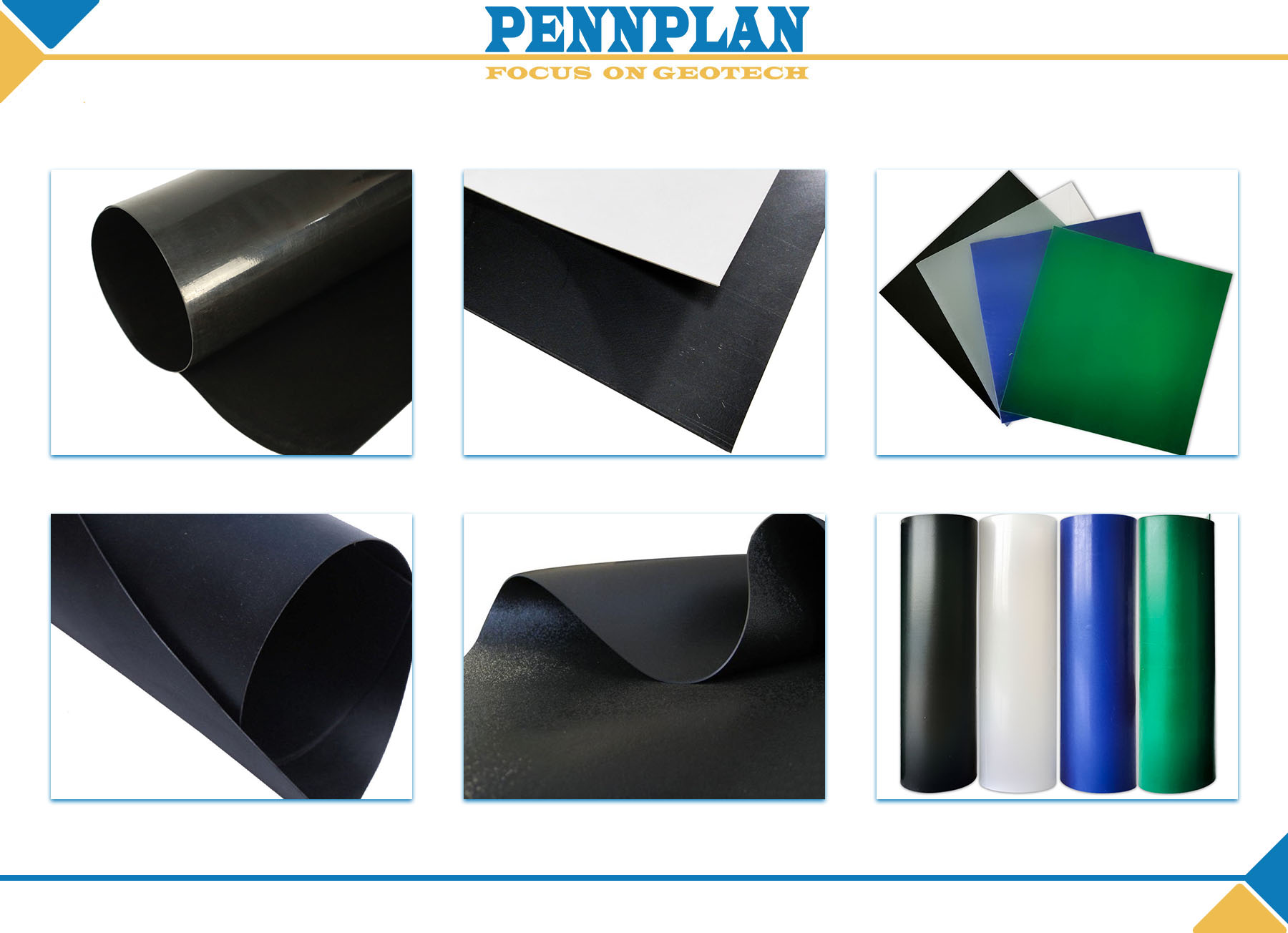

PENNPLAN® Geomembrane


PENNPLAN HP-HDPE homogeneous membrane.

PENNPLAN TX-HDPE textured membrane.

PENNPLAN HP-GL-HDPE membrane coated with GL fabric.

ENNPLAN HP-GF-HDPE membrane coated with GF fabric.

Spcification

Type

Thickness

Width

Length

PENNPLAN HP 300

0.3mm

2m, 3m, 5.8m, 6m, 7m, 8m

200m

PENNPLAN HP 500

0.5mm

2m, 3m, 5.8m, 6m, 7m, 8m

200m

PENNPLAN HP 750

0.75mm

2m, 3m, 5.8m, 6m, 7m, 8m

200m

PENNPLAN HP/TX 1000

1.0mm

2m, 3m, 5.8m, 6m, 7m, 8m

200m

PENNPLAN HP/TX 1500

1.5mm

2m, 3m, 5.8m, 6m, 7m, 8m

100m

PENNPLAN HP/TX 2000

2.0mm

2m, 3m, 5.8m, 6m, 7m, 8m

50m

Type

Mass

Width

Length

PENNPLAN HP-GL/HP-GF 500

500g

2m, 3m, 5.8m, 6m

200m

PENNPLAN HP-GL/HP-GF 1000

1000g

2m, 3m, 5.8m, 6m

200m

PENNPLAN HP-GL/HP-GF 1500

1500g

2m, 3m, 5.8m, 6m

100m

PENNPLAN HP-GL/HP-GF 2000

2000g

2m, 3m, 5.8m, 6m

100m


PENNPLAN HDPE geomembrane is commonly used as a pond liner or underlay for a variety of projects.


1. Environmental protection and sanitation projects: domestic waste landfills, sewage treatment plants, workshops.

2. Water conservancy and civil engineering: river/lake/reservoir/dike anti-seepage, plugging, reinforcement.

3. Municipal engineering: underground, underground construction of buildings and roof tanks, lining of sewage pipes.

4. Landscaping: artificial lake, pond, pond lining of golf course.

5. Petrochemical: chemical plant, oil refinery storage tank anti-seepage and anti-fouling, chemical reaction tank lining.

6. Mining (washing pond, heap leaching pond, ash dump)

7. Traffic engineering: highway foundation reinforcement, culvert seepage prevention.

8. Agriculture: reservoir, reference basin, storage tank, anti-seepage of irrigation system.

9. Aquaculture: lining of fish ponds, shrimp ponds.

10. Polluting enterprises: phosphorite enterprises, sugar factories.
